Violet Color OM4 Patch Cord , MTP / MPO To LC 40G Fiber Optic Patch Cable

Product Categories
Shenzhen Haiyu Optics Communication Equipment Co., Ltd.
Contact Now

Violet Color OM4 Patch Cord , MTP / MPO To LC 40G Fiber Optic Patch Cable

Brand Name : Haiyu Optical

Model Number : HYG-MPO-LC-OM4-8F-5M

Certification : Rohs,CE, ISO

Place of Origin : Guangdong, China (Mainland)

MOQ : 1

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000pcs per day

Delivery Time : 2-3 working days

Packaging Details : polybag+carton or customized

Length : 1m or customized

Fiber count : 8cores

Connector type : MPO,DLC

Fiber type : 50 / 125 OM4

Color : Violet

Application : LAN,For ODF internal link

Insertion loss : ≤0.35 dB

Return loss : >= 35dB

Contact Now

Violet color 8 Cores MTP / MPO to LC 40G OM4 MPO Fiber Optic Patch Cord


Specification:

ParametersMin.TypicalMax.Unit.
Operating WavelengthSingle Mode1310 1620nm
Multi-mode850 1310
MPO Insertion LossSingle Mode 0.6dB
Single Mode Low Loss 0.30.35
Multi-mode 0.75

Single Fiber Insertion Loss
(Fan-out side)

Single Mode 0.2dB
Single Mode Low Loss 0.3
Multi-mode 0.3
Return LossSingle Mode50 dB
Single Mode Low Loss60
Multi-mode30
Operating Temperature- 20 + 70°C
Fiber Type

SM ITU-T G652 and IEC 60793-2-50 B1.3
SM ITU-T G657A2/B2 and IEC 60793-2-50 B1.6A
OM3 ISO/IEC 11801 and IEC 60793-2-10 Ala.2

Cable Jacket TypeRibbon / Fan-outLSZH
Cable Jacket ColorYellowG652 and G657 Single mode fiber
OrangeOM2 Multi-mode fiber
AquaOM3 fiber
Flammability RatingIEC-60332-1, IEC-61034, IEC-60754-1 and 2

Note: 1) IL is tested in room temperature. 2)Total IL is MPO IL + all Fan-out side IL. 3)Tested at 1310nm and 1550nm for single-mode jumper, 850nm and 1310nm for multi-mode jumper.


Description:

MPO/ multi-fiber cabling system is ideally suited for a high density environment that demands space saving and innovative cable management solutions. MPO fan-out supports various connections from multi-fiber to single-fiber out. We also offer various other MPO products such as MPO cassettes, modules and enclosures. These cassettes provide secure transition between MPO and LC or SC connections.

Features:

  • Improves and simplifies fiber routing
  • Decreases fiber management space
  • OEM or customized for special applications
  • Low insertion loss and reflectance
  • High Density
  • Snap-In cassette panel for easy installation, removal and expansion


Applications:

  • Optical fiber communications systems;
  • Optical fiber access network;
  • Optical fiber CATV.
  • Optical fiber test equipments;
  • Optical fiber data communications;
  • LAN

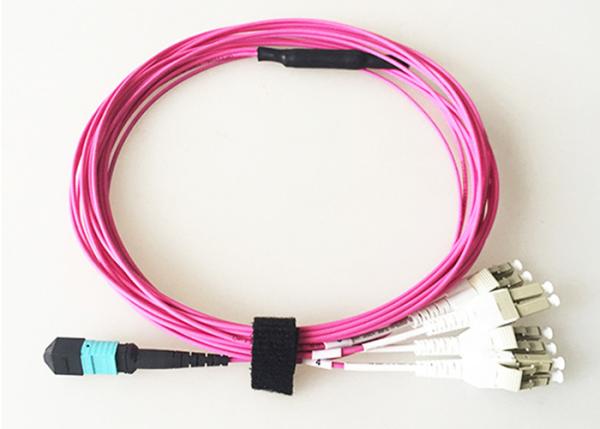

Violet Color OM4 Patch Cord , MTP / MPO To LC 40G Fiber Optic Patch Cable
