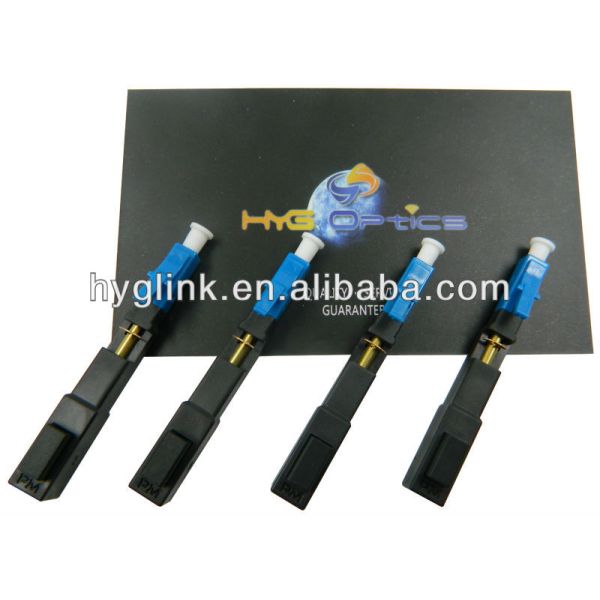

Fiber optic LC/UPC fast connector

Place of Origin : Guangdong, China

Brand Name : HYG

Model Number : HYG-FACT-FC/UPC

Type : Fiber Adapter & Connectors

No. of Fiber : 1.

Use : FTTH

Product name : Fiber Optic Fast Connector

Application : FTTH FTTB FTTX Network

Color : Blue

Certification : RoHS

Warranty : 1 Year

Fiber Type : Single Fiber Single Mode

Material : Plastic

Weight : 5g

Connector Type : LC

Function : FTTH Optical Network Connection

Supply Ability : 1000000 Piece/Pieces per Month lc/upc fiber optic quick connector

Packaging Details : 2000 pcs/ctn,34*33*68cm

Port : shenzhen

MOQ : 100 Piece/Pieces

Price : $2.00 - $5.00 / Piece

Contact Now

Fiber optic LC/UPC fast connector

The Optical Field Assembly Connectors Precision metallic V-Groove components with co-axial self centering, excellent and durable fixing property. The structure base on unique box-building crimping technology. Preseting the Bending fiber prevent the cable from draging. Integrated protection of the casing to withstand harsh indoor environment. After terminating, both the optical and mechanical performance reach the standard for FTTH.

Characteristics:

Good performance and High success rate.

Easiness in installation with average splicing time of 15 sec

Special tool is simple and convenient to use.

Reusable and repeat orperation times are up to 100.

Integrated protection of the casing to prevent the connector form impact

On line tension is up to 20N to protect the connector from the draging

The maxmum tension is up to 100N. It’s the most safety connector

Application:

FTTX/FTTH fiber to the home

Local area network and smart grid

Mining and Oil

Security equipment

Optical Characteristics:

Items		G.652	G.657A	super soft fiber
Insert loss	@1310 nm	/	≤ 0.3dB	≤ 0.25 dB
	@1550 nm	/	≤ 0.35 dB	≤ 0.3 dB
Return loss	@1310 nm	/	≤ -40 dB	≤ -45 dB
	@1550 nm	/	≤ -40 dB	≤ -45 dB

Environment Parameters

Test Item	Change IL	Change RL	Test condition
Mechanical life	≤ 0.2 dB	≤ 5 dB	500 (times)300/100010D/20D
On line tension	≤ 0.2 dB	≤ 5 dB	20N300/100010D/20D
Impation	≤ 0.2 dB	≤ 5 dB	4m high / 3 axis/ 3times300/100010D/20D
High temperature storage	≤ 0.2 dB	≤ 5 dB	80C / 96(hours)300/100010D/20D
Low temperature storage	≤ 0.2 dB	≤ 5 dB	-40C / 96(hours)
Temperature cycling	≤ 0.2 dB	≤ 5 dB	-40C – 75C / 96(hours)

Storage/Operating Temperature: -40°C to +70°C
