48C MPO Fiber Optic Patch Cord OM3 OM4 Multimode PVC LSZH

Brand Name : HYG

Model Number : HYG-MPO-48F-02

Certification : ROHS

Place of Origin : Guangdong, China

MOQ : 10 Piece/Pieces

Price : $75.00 - $120.00 / Piece

Supply Ability : 2000 Piece/Pieces per Day

Packaging Details : Neutral Packing 500pcs/ctn 1pc/bag

Connector type : LC,MPO

Cable type : PVC;LSZH

Operating Wavelength : 1310/1550nm

Core Quantity : 48 Cores

Fiber mode : OM3/OM4

Name : 48 Cores OM3/OM4 Multimode Multifiber MPO TO LC Patch Cord Fiber Optic

Contact Now

48 Cores OM3/OM4 Multimode Multifiber MPO TO LC Patch Cord Fiber Optic

Thank you for viewing our page! We are a quality fiber optic cable manufacturer out of Shenzhen, China. Haiyu Optical holds ISO9001 certification and we are continually pushing the limits of increasing quality, outpacing our competitors. We have since grown to a team of dozens of individuals after our founding in 20011. We own and operate our own 1500 square meter factory in Shenzhen. Our products are all approved by UL, ROSH & CE.

Please reach out to us if you have any questions or if you would like to place an order. Thank you!

48C MPO Fiber Optic Patch Cord OM3 OM4 Multimode PVC LSZH

	Single-Mode Fiber			Multi-Mode Fiber
	PC	UPC	APC	PC
Insertion Loss	≤0.3 dB	≤0.3 dB	≤0.3 dB	≤0.3 dB
Return Loss	≥40 dB	≥50 dB	≥60 dB	N/A
Operating Wavelength	1310nm & 1550nm			850nm & 1300 nm
Repeatability	≤0.1 dB
Working Temperature	-20~+60°C
Service Life	>1,000 mating cycles

FIBER MANUFACTURERS

Fiber Type	Manufacturer	Colors Available
9/125 μm	YOFC or Corning	Yellow
50/125 or 62.5/125 μm	YOFC or Corning	Orange
OM3 or OM4 50/125 μm	YOFC or Corning	Aqua

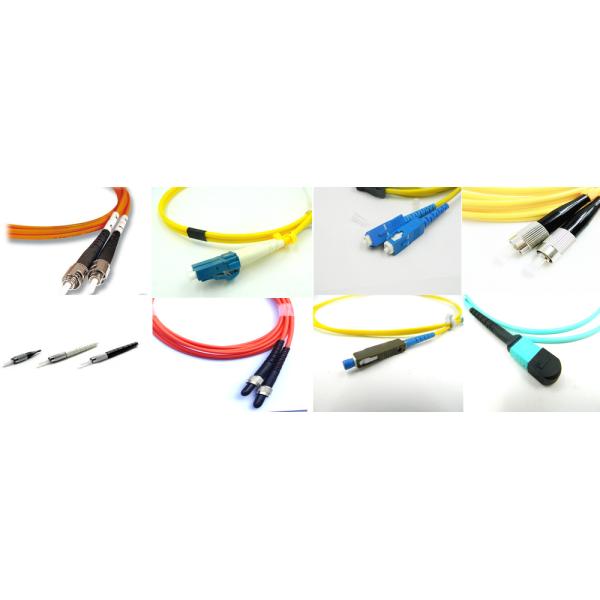

OPTIC FIBER CONNECTOR OPTIONS

48C MPO Fiber Optic Patch Cord OM3 OM4 Multimode PVC LSZH

SC
LC
ST
FC
MTRJ
MU
SMA
E2000
D4
DIN
MPO
MTP

FIBER OPTIC FERRULE POLISH STYLES OPTIONS

Physical Contact (PC)
Ultra Physical Contact (UPC)
Angled Physical Contact (APC)

CABLE JACKET OPTIONS

PVC - Polyvinyl Chloride
LSZH - Low Smoke Zero Halogen
OFNR- Optical fiber nonconductive riser
OFNP - Optical fiber nonconductive plenum
HYTREL

FERRULES

48C MPO Fiber Optic Patch Cord OM3 OM4 Multimode PVC LSZH

We machine our ceramic ferrules with great precision using zircnium dioxide
Each ferrule has a beautiful end face polishing and full inspection prior to terminating to the cable
Low insertion loss and high return loss
High stability and repeat
In accordance with Telcordia GR-326-CORE Standards

PRODUCT APPLICATION

48C MPO Fiber Optic Patch Cord OM3 OM4 Multimode PVC LSZH

Local Area Network (LAN)
Datacenter
Telecommunication Optic Transmission Network
Optical Access Network (OAN)
Active Device Termination
CATV
Fiber Optic Data Transmission (FODT)

MECHANICAL TESTING

Vibration	10-55Hz 0.75mm Single Amplitude 30 Minutes Each Direction
Drop Test	Dropped from 1M, 5x
Durability	1000 Insertions
Anti-Pull Power	90N

ABOUT OUR COMPANY

48C MPO Fiber Optic Patch Cord OM3 OM4 Multimode PVC LSZH

Product Tags:

48C MPO Fiber Optic Patch Cord

OM4 MPO Fiber Optic Patch Cord

PVC LSZH Multimode Patch Cord
