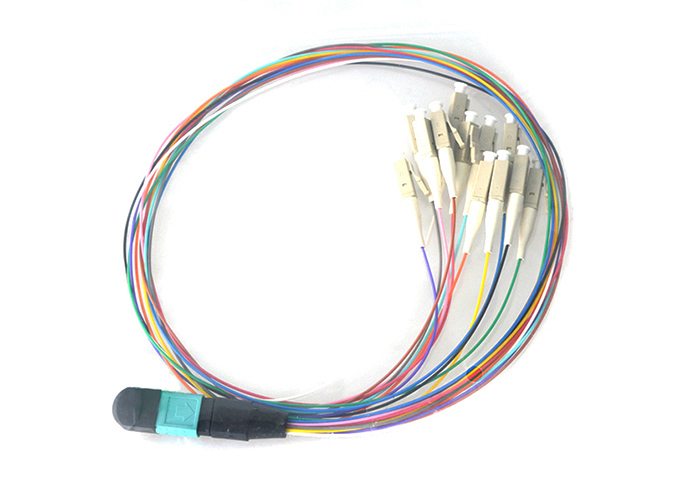

12 Cores MPO Fiber Optic Patch Cord MPO To LC Interface High Density

  • 1
  • 2

Brand Name : Haiyu Optical

Model Number : HYG-MPO-LC-OM3-12F-0.5M

Certification : Rohs,CE, ISO

Place of Origin : Guangdong, China (Mainland)

MOQ : 1

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000pcs per day

Delivery Time : 2-3 working days

Packaging Details : polybag+carton or customized

Type : 12 Fiber MPO TO LC OM3 50/125 Multimode Fiber Optic Patch Cable

Connector type : MPO,LC

Fiber type : OM3,OM3-300,Multi Mode

Cable jacket : LSZH, PVC, 0.9MM 12 COLORS

Insertion loss : ≤0.35 dB

Return loss : >= 35dB

Operating temperature : - 40°C ~ + 80°C

Application : FTTH FTTB FTTX Network,LAN,Telecom/network

Contact Now

12 Cores MPO to LC Interface OM3 Multimode Fiber Optic Patch Cables 50CM

Specification:

Parameters Min. Typical Max. Unit.
Operating Wavelength Single Mode 1310 1620 nm
Multi-mode 850 1310
MPO Insertion Loss Single Mode 0.6 dB
Single Mode Low Loss 0.3 0.35
Multi-mode 0.75

Single Fiber Insertion Loss

(Fan-out side)

 Single Mode 0.2 dB
Single Mode Low Loss 0.3
Multi-mode 0.3
Return Loss Single Mode 50 dB
Single Mode Low Loss 60
Multi-mode 30
Operating Temperature - 20 + 70 °C
Fiber Type

SM ITU-T G652 and IEC 60793-2-50 B1.3

SM ITU-T G657A2/B2 and IEC 60793-2-50 B1.6A

OM3 ISO/IEC 11801 and IEC 60793-2-10 Ala.2
Cable Jacket Type Ribbon / Fan-out LSZH
Cable Jacket Color Yellow G652 and G657 Single mode fiber
Orange OM2 Multi-mode fiber
Aqua OM3 fiber
Flammability Rating IEC-60332-1, IEC-61034, IEC-60754-1 and 2

Note: 1) IL is tested in room temperature. 2)Total IL is MPO IL + all Fan-out side IL. 3)Tested at 1310nm and 1550nm for single-mode jumper, 850nm and 1310nm for multi-mode jumper.

Transmission
Characteristics Unit SM Std. 50um 62.5um OM2 OM3
Max. Attenuation

dB/km

(nm)

0.4/0.3

(1310/1550)

2.8

(850)

3.0

(850)

2.8

(850)

2.8

(850)
Min. Bandwidth

MHz•km

(nm)

 -

500/500

(850/1300)

200/200

(850/1300

750

(850)

2000

(850)
Dispersion Coefficient

ps/

nm2•km

<3.0

(1310nm)

 - - - -

Description:

MPO/ multi-fiber cabling system is ideally suited for a high density environment that demands space saving and innovative cable management solutions. MPO fan-out supports various connections from multi-fiber to single-fiber out. We also offer various other MPO products such as MPO cassettes, modules and enclosures. These cassettes provide secure transition between MPO and LC or SC connections.

Features:

  1. Improves and simplifies fiber routing
  2. Decreases fiber management space
  3. OEM or customized for special applications
  4. Low insertion loss and reflectance
  5. High Density
  6. Snap-In cassette panel for easy installation, removal and expansion

Applications:

1,Optical fiber communications systems;

2,Optical fiber access network;

3,Optical fiber CATV.

4,Optical fiber test equipments;

5,Optical fiber data communications;

Environmental Reliability Test

The performance of the patchcords has been carefully designed to meet the IEC standards, GR-326-CORE, in the test of optical characteristics, vibration test, thermal cycling, impact resistance, salt spray erosion, thermal aging, humidity resistance and others

12 Cores MPO Fiber Optic Patch Cord MPO To LC Interface High Density
